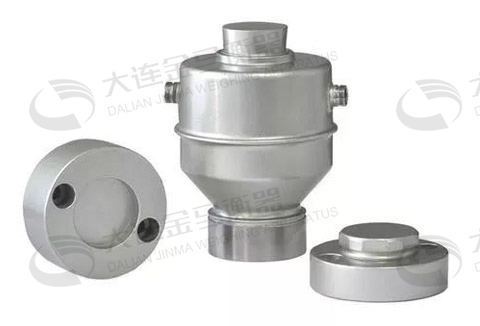

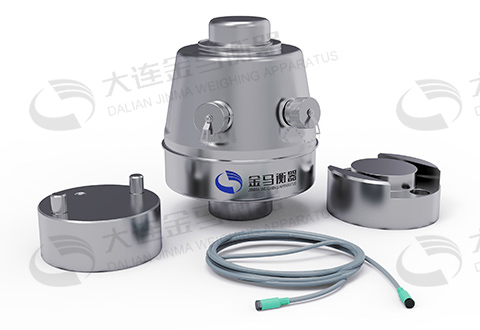

| Digital Columnar Cell REM DJS-Z | |
|---|---|
| Rated range | 40t |
| Accuracy class | OIML C6 |
| Creep | 0.0127%F.S |
| Repeatability | ≤±0.0055%F.S |
| Temperature effect on zero | ≤±0.098%F.S/℃ |
| Temperature compensation range | -10℃~+40℃ |
| Operating temperature range | -30℃~+70℃ |
| Stored temperature | -40℃~+80℃ |
| Excitation Voltage | 7~15VDC |
| Lightning surge protection | 100000A（8/20μs、Class I impulse current withstand test |
| Communication Mode | RS485 |
| Safe overload | 200% |
| Ultimate overload | 300% |
| Protection class | IP68 (3m water depth for 7 days) / IP69K |
| Material | Elastomer：Stainless steel/shell:stainless steel/ connector: plug-in aviation plug that meets military standards |
| Group weighing method | Connection?operating?way |

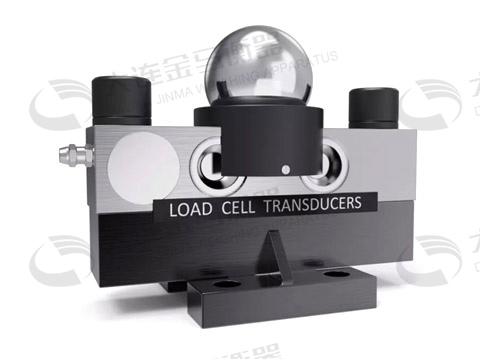

| MK Digital Bridge Cell QSD | |
|---|---|
| Rated load | 40T |
| Accuracy class | OIML C3 |
| Sensitivity | 2.0±0.002mV/V |
| Comprehensive error | ±0.05%F.S |
| Creep (30 min) | ±0.02%F.S |
| Temperature effect on zero | ±0.02F.S/10℃ |
| Temperature effect on output | ±0.02F.S/10℃ |
| Input resistance | 750±10Ω |
| Output resistance | 703±2Ω，703±5Ω（L≥15m） |
| Insulation resistance | ≥5000MΩ |
| Operating Temp Range | -30~70℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Rated excitation voltage | 10~12V DC |
| Maximum excitation voltage | 15V DC |
| Protection Class | IP68 |
| Material | Stainless Steel |
| Cable Length | 15m |

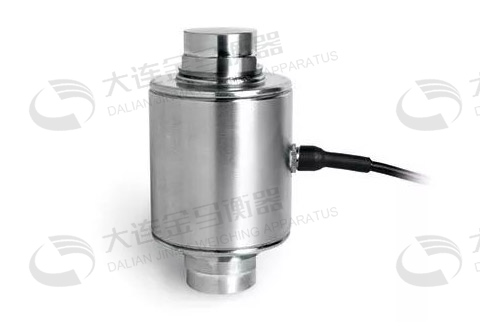

| MK Columnar Digital cell | |
|---|---|
| Project | Parameter |
| Rated load | 40t |
| Accuracy Class | OIMLR60C3 |
| Creep | 0.015%F.S/30min |
| Temperature effect on output | 0.01%F.S/10℃ |
| Temperature effect on zero | 0.012%F.S/10℃ |
| Temperature compensation range | -10℃~+40℃ |
| Operating temperature range | -30℃~+70℃ |
| Supply voltage | 7~15VDC |
| Communication baud rate | 9600/19200 |
| Communication Mode | RS485 |
| Safe overload | 150% |
| Ultimate overload | 300% |
| Protection Class | IP68/IP69K |
| Material | Alloy Steel+Stainless Steel housing |
| Wiring Method | Incentive+(VIN): Blue Incentive-(GND): Black Signal + (485-A): White signal-(485-B): Red |
| UTILCELL Digital Columnar cell 730D | |
|---|---|
| Model: | 730D 30t/40t |
| Cell structure: | Pressure column type |
| Rated Capacity: | 30/40 tons |
| Maximum?safe?overload: | 150%FS |
| Accuracy class: | C4 |
| Creep (30 min): | <±0.012% FS |
| Temperature?coefficient?of?zero: | <±0.01% FS /5℃ |
| Range temperature coefficient: | <±0.006% FS /5℃ |
| Non-linear: | ￡±0.010%F.S |
| Hysteresis: | ￡±0.016%F.S |
| Repeatability: | <±0.01% FS |
| Operating temperature range: | -30°C~+70°C |

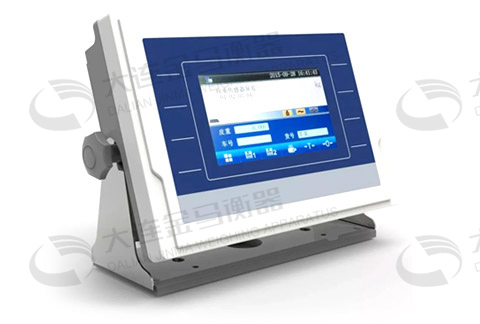

| Weighing indicator REM DI2069 |
|---|
| Product Features: |
| ▲ 1. 7inch 800 * 480 TFT color display makes the display more exciting; |
| ▲ 2. Fast and accurate touch screen operation; |
| ▲ 3. Each function has image-text detailed description and error prompt; |
| ▲ 4. Multi-image digital scale adjustment interface, make the digital advantages of truck scale better; |
| ▲ 5. Various weighing platform status analysis interfaces, making it easier to eliminate installation hazards and investigate problems; |
| ▲ 6. Support Chinese and English touch full keyboard input, coupled with quick input method of license plate number and article number, making weighing information input more convenient; |
| ▲ 7. Support detection information more IoT E-type protocol; |
| ▲ 8. Sensors and external equipment adopt electrical isolation protection design to improve the long-term stability and reliability of the system; |
| ▲ 9. Support to view more detection information of each sensor, such as internal temperature and humidity, load and overload information; |
| ▲ 10. Dedicated management functions for memory car number and weighing record, making it easier to manage big data; |
| ▲ 11. Support IoT function, let customers know the status information of weighing platform anytime, anywhere; |

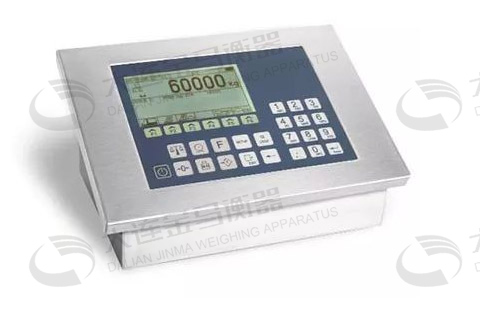

| UTILCELL Weighing indicator MATRIX II 89400D |
|---|
| Technical Parameters: |
| ◆ LCD display, monochrome, 240 × 128 pixels; |
| ◆ OIML R76 and EN 45501 certification can set univariate and multivariate; |
| ◆ Calibration and configuration of the instrument via keyboard or remote communication; |
| ◆ By adding an interface board, the MATRIX II analog meter or MATRIX II digital meter can be connected to two load cell signals; |
| ◆ Time and date; |
| ◆ Multi-function front-panel buttons and PS / 2 interface for standard PC keyboard; |
| ◆ Instrument power: AC 100-240V (50 / 60Hz) or DC 10-24V; |
| ◆ Instrument power: AC 100-240V (50 / 60Hz) or DC 10-24V; |
| ◆ Multi-range function, allowing two ranges, each range corresponds to a different graduation value; |
| ◆ Custom ticket function; |
| ◆ Linear calibration function; |
| ◆ Calibration lock function: The instrument's rear panel is equipped with a mechanical calibration lock, and the internal software of the meter also has a calibration lock setting to prevent the meter parameters from being modified at will; |
| ◆ 32-bit microprocessor, rewritable memory, support software updates for new applications; |
| ◆ Alternative applications: truck scales, industrial weighing and batching; |
